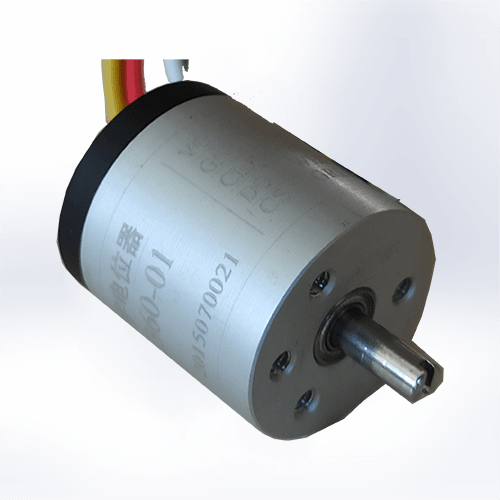

R18-SER-W360 Rotary Encoder

Mechanical angle	360° (endless)
Protection degree	IP67
Operating torque	<1mN·m
Number of revolutions	6000 rpm
Life expectancy	100,000,000
Mass	Approx. 20g
Housing material	Anodized aluminium alloy
Shaft material	Stainless steel
Operating temperature range	-40°C ~ +85°C
Storage temperature range	-40°C ~ +85°C
ESD durability	Contact discharge ±8KV / Aerial discharge ±15KV (EN61000-4-2:2009)
EMS durability	10V/m (80 MHz–1 GHz, 1 KHz 80% Amplitude modulation) (EN61000-4-3:2006 + A1:2010)
Applied voltage	5V±10%
Output signal	SER (With status bit data output like SSI)
Current consumption (no-load)	<50mA
Electrical angle	360°
Independent linearity tolerance	±0.3%
Resolution	4096 (12 Bit)
Update rate	0.38ms
