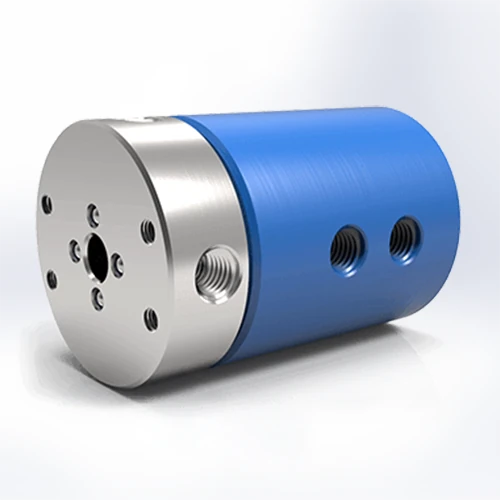

Name: LTM-2341 4-Passage Rotary Joint
Brand: DSTI
SKU: LTM-2341
Price: 1189.80 USD
Availability: OutOfStock

$ 1,189.80

Stock: Out Of Stock

FREE SHIPPING OVER 500$

LTM-2341 4-Passage Rotary Joint

DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.

Technical Specifications

Model #	LTM-2341
Connection	Rc3/8"-19 BSPT
Passage Size	9.525 mm
Diameter	87.3 mm
Length	159.614 mm
Through Bore	9.525 mm
Minimum Torque	1.36 Nm
Number of Ports	4
Maximum Pressure	600 PSI (40 BAR)
Maximum Speed	500 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18°C to 105°C (0°F to 220°F)
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.

Watch more repair and maintenance videos on our YouTube channel.

Technical Specifications
Model #	Connection	Passage Size	Diameter	Length	Through Bore	Minimum Torque
LTM-2341	Rc3/8"-19 BSPT	9.525 mm	87.3 mm	159.614 mm	9.525 mm	1.36 Nm
- Number of Ports: 4 - Maximum Pressure: 600 PSI [40 BAR] - Maximum Speed: 500 rpm - Maximum Vacuum: 30 HG - Operating Temperature: -18° C to 105° C [0° F to 220° F]
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
