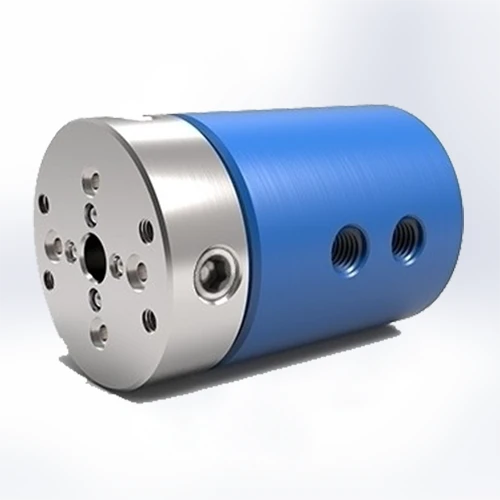

LTM-2141-OF 4-Passage Rotary Joint

Model #	LTM-2141-OF
Connection	Rc1/8"-28 BSPT
Passage Size	3.962 mm
Diameter	55.55 mm
Length	84.176 mm
Through Bore	9.525 mm
Minimum Torque	0.45 Nm
Number of Ports	4
Maximum Pressure	600 PSI (40 BAR)
Maximum Speed	500 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18°C to 105°C (0°F to 220°F)
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.
