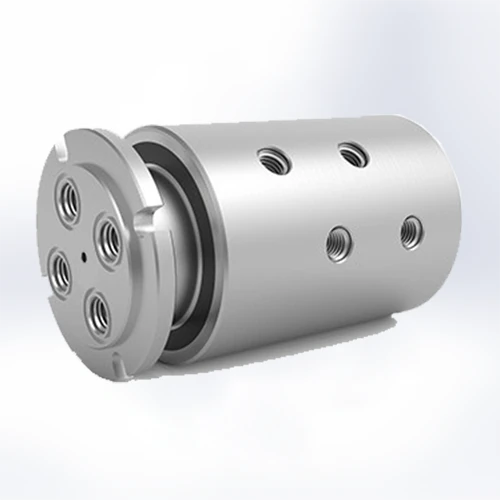

GPSM-340 4-Passage Rotary Joint - DSTI

Model #	GPSM-340
Connection	G3/8"-19 BSPP
Passage Size	9.525 mm
Diameter	98.425 mm
Length	177.292 mm
Through Bore	None
Minimum Torque	12.88 Nm
Number of Ports	4
Maximum Pressure	7500 PSI [515 BAR]
Maximum Speed	500 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18° C to 105° C [0° F to 220° F]
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.
