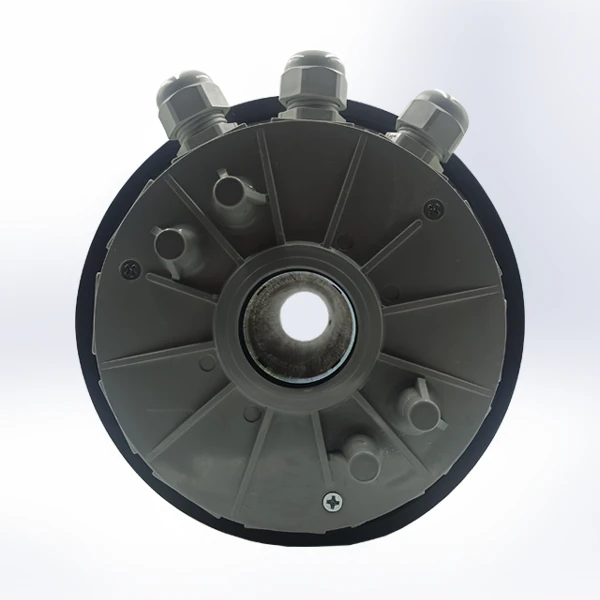

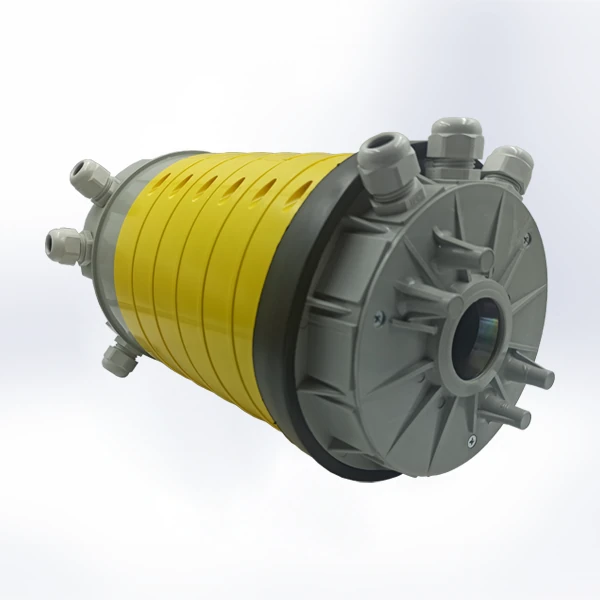

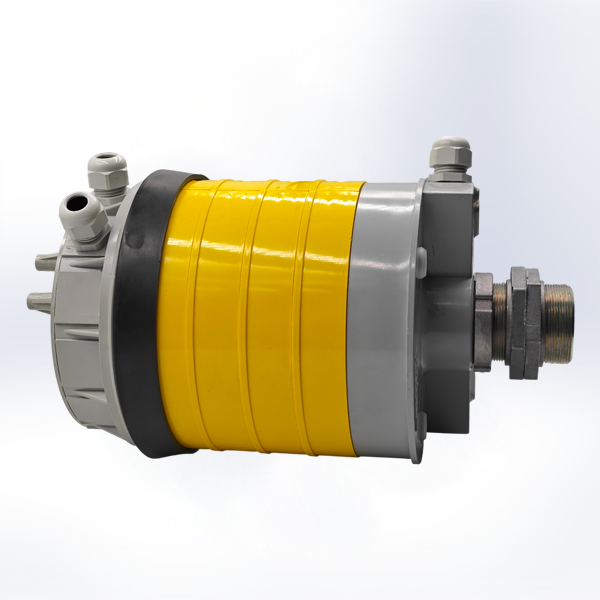

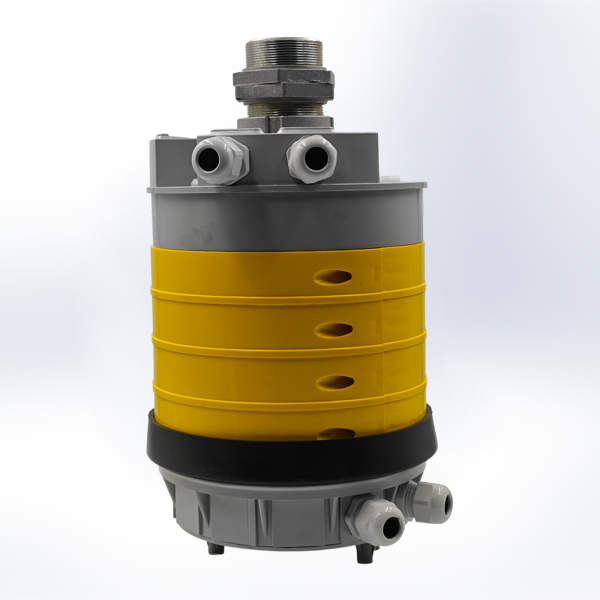

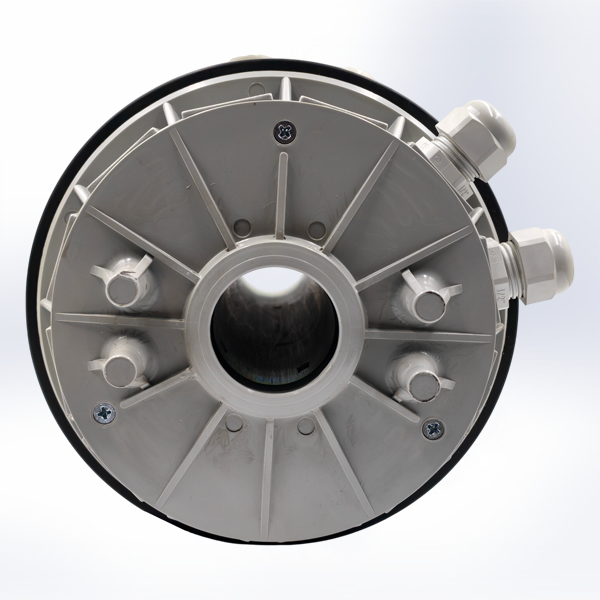

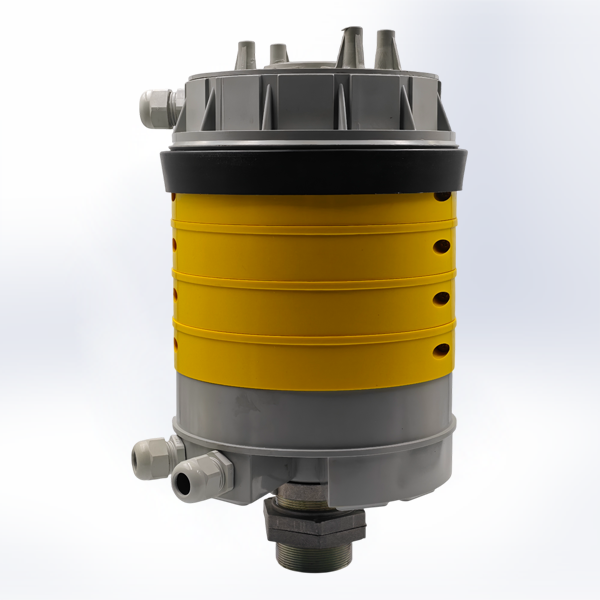

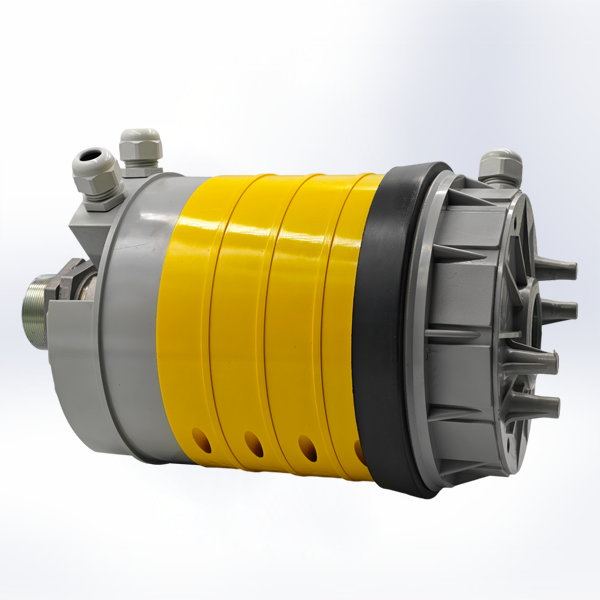

Ravioli GPRPB12 Slip Ring

Name: Ravioli GPRPB12 Slip Ring
Brand: Ravioli
SKU: GPRPB12
Price: 900.00 USD
Availability: InStock

Product Code:GPRPB12

Stock:5

Buy Now

Free shipping over $500

Fast & reliable service

Product Description

ADD TO BASKET

GPRPB12

Material housing	Thermoplastic segments
Protection degree	IP51
Operating temperature	-20°C to +80°C
Number of rings	12 rings
Material brushes	Copper-graphite
Rated operational current	20A
Rated operational voltage	680 Vac/Vdc
Insulation test voltage	2.5 kV
Insulation resistance	>200MΩ
Operating speed	30 rotations/min
Free inner diameter	42mm
Mounting position	Vertical recommended, other positions possible
Maintenance cycles	200,000 / 50,000 rotations
