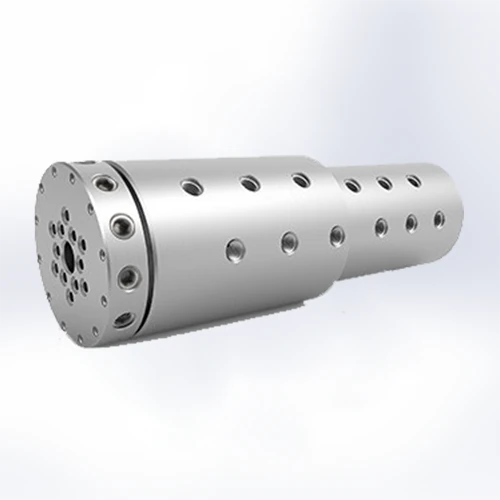

GPSM-201-12-OF 12-Passage Rotary Joint - DSTI

Model #	GPSM-201-12-OF
Connection	G1/4"-19 BSPP
Passage Size	6.35 mm
Diameter	112.7 mm
Length	339.853 mm
Through Bore	19.05 mm
Minimum Torque	26.03 Nm
Number of Ports	12
Maximum Pressure	7500 PSI [515 BAR]
Maximum Speed	500 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18° C to 105° C [0° F to 220° F]
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
