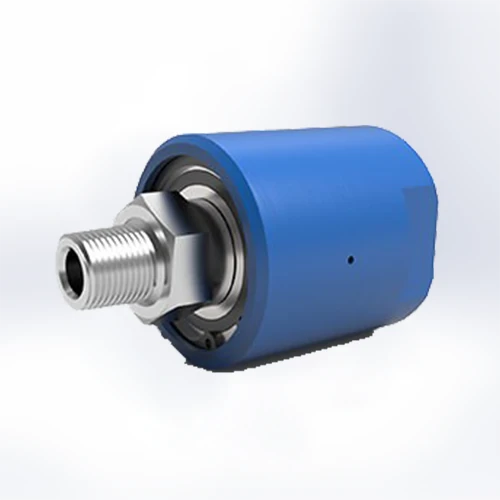

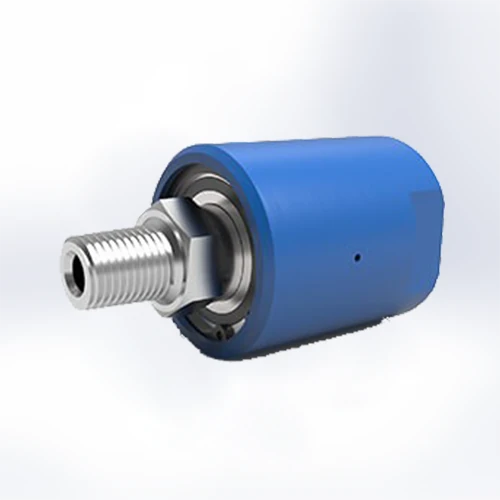

SPSM-5210 1-Passage Rotary Joint

Model #	SPSM-5210
Connection	Rc1/4"-19 BSPT
Passage Size	6.35 mm
Diameter	38.1 mm
Length	60.452 mm
Through Bore	None
Minimum Torque	0.9 Nm
Number of Ports	1
Maximum Pressure	600 PSI [40 BAR]
Maximum Speed	500 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18° C to 105° C [0° F to 220° F]
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.
