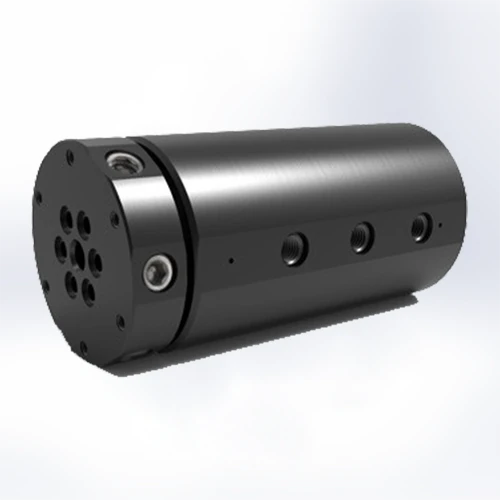

SEM-1161-OF 6-Passage Rotary Joint - DSTI

Model #	SEM-1161-OF
Connection	G1/8"-28 BSPP
Passage Size	4.75 mm
Diameter	74.6 mm
Length	154.788 mm
Through Bore	9.525 mm
Minimum Torque	6.1 Nm
Number of Ports	6
Maximum Pressure	7500 PSI [515 BAR]
Maximum Speed	300 rpm
Maximum Vacuum	30 HG
Operating Temperature	-18° C to 105° C [0° F to 220° F]
* Minimum torque required to rotate based on zero pressure with oil/hydraulic media. Required torque to rotate may be greater when using other media types or dry running.
DSTI is a registered trademark of Dynamic Sealing Technologies, Inc.
