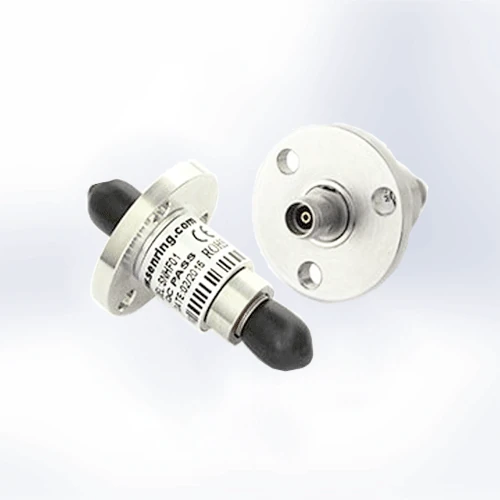

HF0118-12 Single-Channel Radio Frequency Rotary Joint

Connector Type	SMA-K (50Ω)	Style	Type I
Frequency	DC to 18 GHz	Phase WOW (Max degree)	one
VSWR (max)	1.3@DC to 10 GHz 1.4@DC to 18 GHz	Insertion loss	0.25 dB @DC to 10 GHz 0.30 dB @10 to 18 GHz
VSWR fluctuation (max)	0.05	Insertion loss fluctuation	0.05 dB
Peak power (max)	300W	Average power	@1 GHz, 500 W @2W @ 6GHz 1W @ 12 GHz WQ @ 18GHz
Rotating speed (max)	250RPM	Working life	> 10 million revs (depends on working conditions)
Starting torque (max)	0.5cm·N	Rotating torque (max)	0.5 cm·N
Connector axial load (max)	1.3N	Connector radial load (max)	0.1N
Insulating material	PTFE	IP grade	IP 40 acc. EN 60529
Temperature (Working & Storage)	-55°C to +85°C	Humidity	95% (work humidity), 85% (storage humidity)
