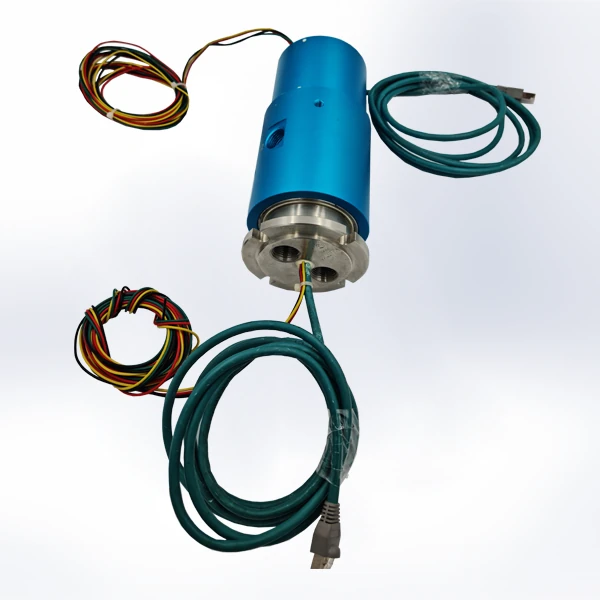

Electro Pneumatic Air Flow Through With 2 Channel

Product Code:OD95mm-1E-10x4A
Stock:1
Share:
Buy Now
WhatsApp
featuresFree shipping over $500
featuresFast & reliable service
Product Description
ADD TO BASKET
Electro Pneumatic [ZER-X11EP-RSZQ-4X10A-2.G12-RJ45]

Technical Specifications

Channels 4×10A / 1×Gigabit Ethernet
Outer Diameter 95 mm
Current Amp. (Maximum) ≤ 10A / Per ring
Operating Voltage ≤ 380Vac / Vdc
Electrical Interference ≤ 0.01 Ω (5 rpm, 6 VDC, 0.2 A)
Number of Revolutions 0–600 rpm
Operating Temperature -20°C to +80°C
Connection Cable Length 2100 mm cable (Stator / Rotor)
Contact Material Precious Metals
Working Position Vertical and Horizontal
Pressure of Work 100 Bar
Connection Diameter 1/2″
Pipe Diameter Ø 12
3D

Technical Datasheets

Access all related technical documents including product specifications and wiring diagrams in PDF format.

Datasheet
