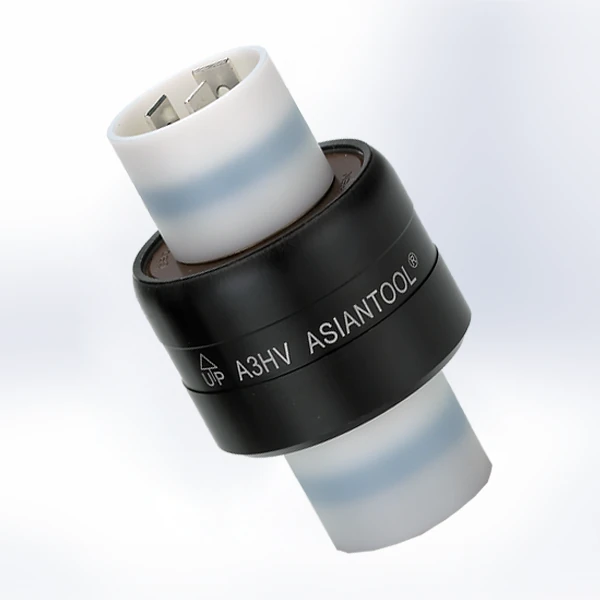

Asiantool Model A3HV Rotary Electrical Connector

Name: Asiantool Model A3HV Rotary Electrical Connector
Brand: Asiantool
SKU: A3HV
Price: 160.00 USD
Availability: PreOrder

Product Code: A3HV

Made to order — we confirm the delivery date with your order

$ 160.00

Free shipping over $500 Fast & reliable service

Product Description

ASIANTOOL A3HV Mercury Slip Ring

The Asiantool A3HV mercury slip ring is designed to carry 3 channels of 30A current. It is compact, durable, and highly efficient for power transmission applications.

Low internal resistance and pin-style connections (optional wires available)
Uses mercury conduction, unlike traditional contact-based slip rings
Capable of achieving up to 2 billion cycles with no wear on contacts
Delivers high signal transmission quality even at high speeds
Ideal for space-constrained, high-performance rotary systems

Typical Applications

Packaging Machines
Military Vehicles
Cable Drums
Wind Turbines
Textile Machinery
Robot Arms
Rotary Tables
Welding and Laminating Machines
Heated Rollers
Cable Reels
Thermocouples and Strain Gauges
Remote Video Control Systems
Semiconductor Production Tools
VFD Motor Shaft Grounding
Rotary LIDAR Systems

Benefits of Mercury Slip Rings

Extremely low electrical noise
Less than 1 milliohm contact resistance
Supports low voltage signals or high current in a compact design
Zero maintenance required
Increased operational lifespan and reliability

Technical Specifications (click to expand)

Specifications
Model	A3HV
Conductors	3
Max. Current Rating	30A
Max. Voltage Rating	500V AC/DC
Max. Frequency	200 MHz
Max. Rotational Speed	300 rpm
Operating Temp.	-30 °C to 60 °C
Max. Rotational Torque	700 gm-cm
Circuit Separation	> 50MΩ

Popular Mercury Slip Ring Brands

Technical Specifications

Model	A3HV
Conductors	3
Max. Current Rating	30A
Max. Voltage Rating	500V AC/DC
Max. Frequency	200 MHz
Max. Rotational Speed	300 rpm
Operating Temp.	-30°C to 60°C
Max. Rotational Torque	700 gm-cm
Circuit Separation	> 50MΩ
