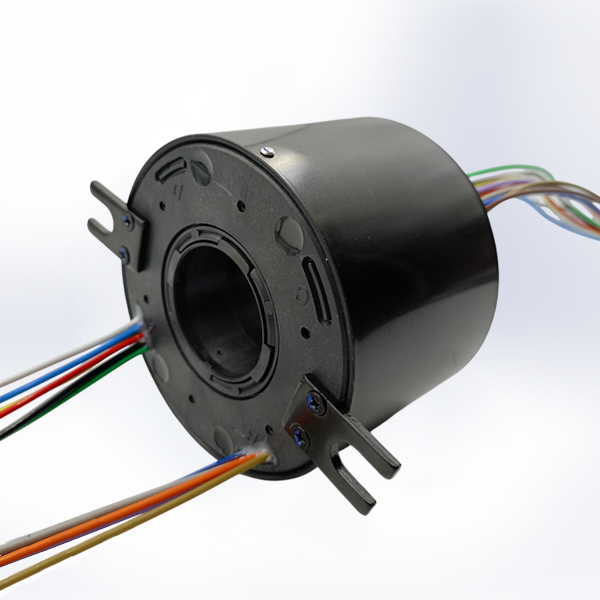

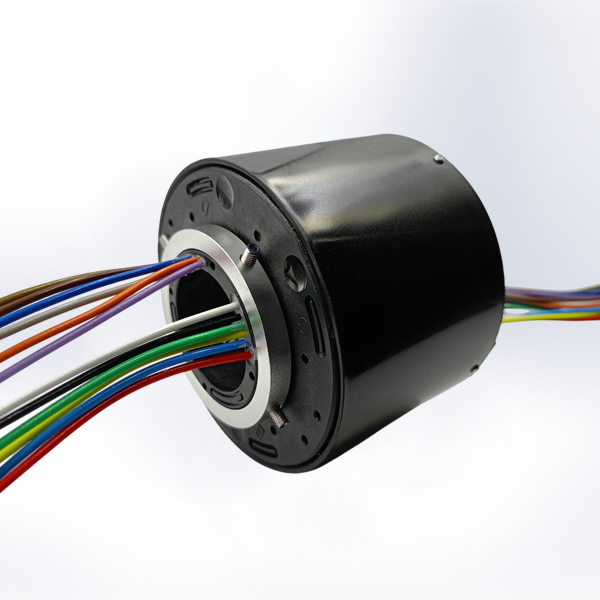

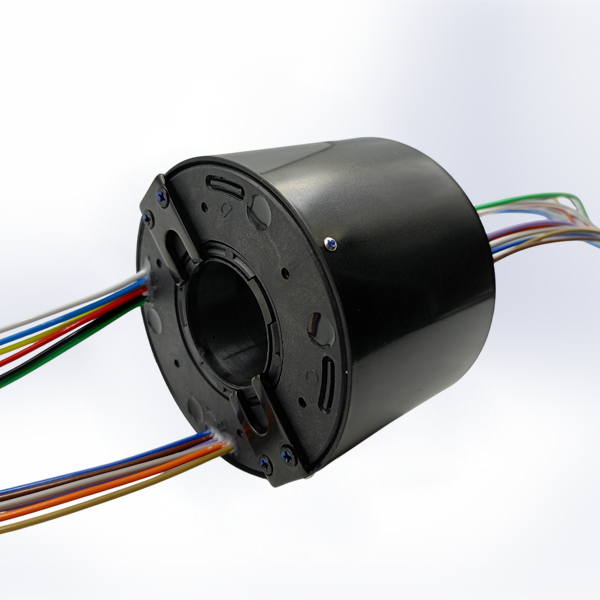

ZEN-X5 12X10A (ID38mm 12-Channel, 10A)
ZEN-X5 id 38mm 12 channel through bore slip ring is one of the our through-bore slip ring models. The ID38mm slipring is a high-performance, compact unit designed for use in demanding industrial and military applications. With a compact ID38mm size and 12 channels, it is capable of transmitting power and data signals with high reliability and stability. One of the key features of the ZEN-X5 is its ability to transmit up to 10A of current per channel, making it ideal for applications that require high power transmission. This is achieved through the use of high quality, gold-plated contacts, which provide low resistance and high durability.
The id 38mm 12 channel also features a high speed data transmission capability, with a maximum data rate of up to 48Mbps per channel. This is made possible by the use of advanced signal processing techniques and high-quality, shielded twisted pair cables. This makes it suitable for applications that require fast and reliable data transmission, such as remote control systems and industrial automation. The ZEN-X5 12X10A is built to withstand harsh environments and is designed to operate in temperatures ranging from -20°C to +80°C.
Some of the areas of usage of ID38m0m,: robots, cranes & heavy industry tools, textile machines and gantry cranes.
Technical Specifications of Inner Diameter 38mm 12 Channel |
|
Channels | 12 |
Current Amp. (maximum) | ≤ 10A / Per ring |
Operating voltage | ≤ 600VAC /DC |
Electrical Interference | ≤ 0,01 Ω (5 rpm, 6 VDC, 0,2 A) |
Number of revolutions | 0- 300 rpm |
Operating temperature | -20°C to +80°C |
Connection Cable Length | 1000 mm cable (Stator /Rotor) |
Contact Material | Gold on gold |
Working Position | Vertical and Horizontal |
