ZEN-X4 – 6*15A (ID25mm)

Roda Sliprings

6 in stock

6-Channel, 15A, 600rpm, 600V, Aluminum

  • Shipment on the same day (only for stocks).
  • Free Shipment over +250 USD via DHL Express or TNT.

Download the PDF to get more details…


6 in stock


ZEN-X4 – 6*15A (ID25mm)

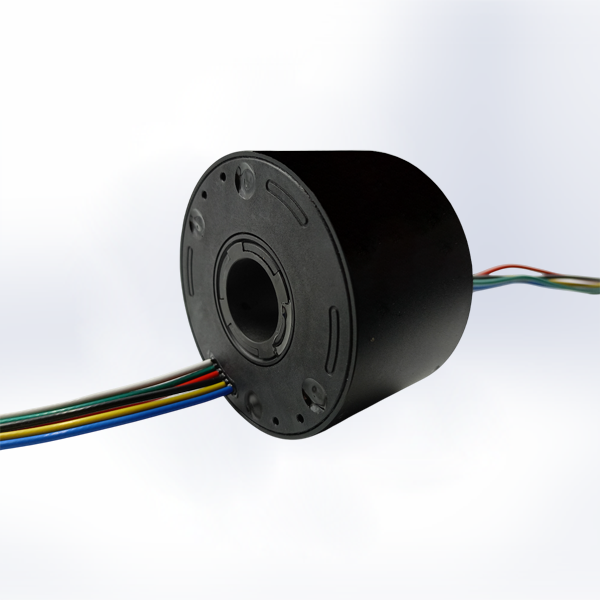

ZEN-X4 – 6*15A (ID25mm) is one of our through-bore slip ring models, ID25mm has 6 channels which each have 15A operating current. The through-bore slipring transfers the electrical data and signals from stationary part to rotary part. It has contacts made of precious metals and its housing material is aluminum. Inner diameter of the through-bore slip ring is 25mm. Operating temperature range is from -20 °C to +80°C degrees. Some of areas of usage of the ZEN-X4 through-bore slip ring are robotic applications, crane applications, defence industry and automation systems. The through-bore slip ring meets the standards of IP51 protective class.  The ZEN-X4 offers high quality to its customers and it provides flexibility and high efficiency in the systems.

If you want to see other types of ZEN-X4 series, you can click here.

You can click here to view other through-bore sliprings.

Technical Specifications
Channels  6
Current Amp. (Maximum)  ≤ 15A / Per ring
Operating Voltage  ≤ 600VAC /DC
Electrical Interference  ≤ 0,01 Ω (5 rpm, 6 VDC, 0,2 A)
Number of revolutions  0- 600 rpm
Operating Temperature  -20°C to +80°C
Connection Cable Length  1000 mm cable (Stator /Rotor)
Contact Material  Precious metals
Working Position  Vertical and Horizontal

ID25mm 6-Channel, 15A, Through-bore Slip Ring
